Mitsubishi 4G15 -- Install Short-Ram Air Intake

<< First Last >> ..2

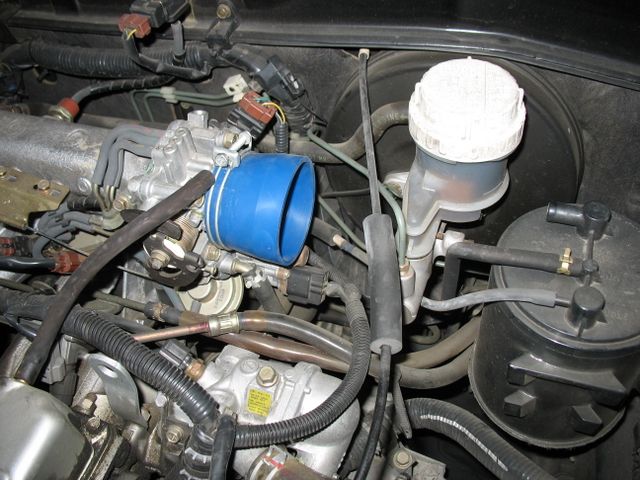

Install Throttle Body Gasket

Use either the original clamp or the one from the kit and install it to the throttle body.

Throttle body short tube

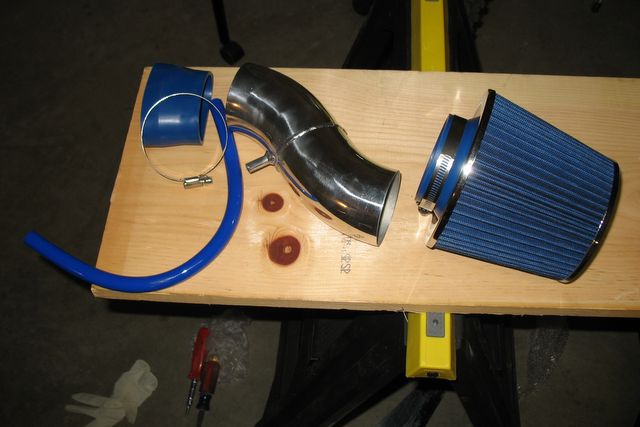

Assemble the Short-Ram Inlet Tube and filter

Install the clamp so it can be tightened from the front of the engine and tighted the clamp screw.

Short-ram kit for 4g15

Attach a Friction Spacer to the EVAP Canister

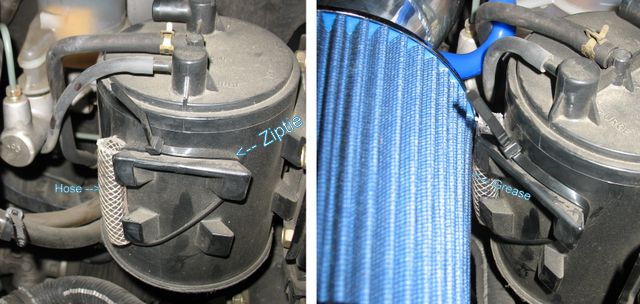

I used a piece of hose to keep the filter from rubbing against the evaporative emission canister.

EVAP canister
Attach the Inlet Tube to the Throttle Body

Position the clamp on the throttle body so it can be tightened from the front of the engine. Install the inlet tube and filter assembly.

Remove air intake filter

Attach the PCV Valve

The PCV valve is on the wrong side of the inlet tube on the 5g, but luckily it still reaches the valve cover.

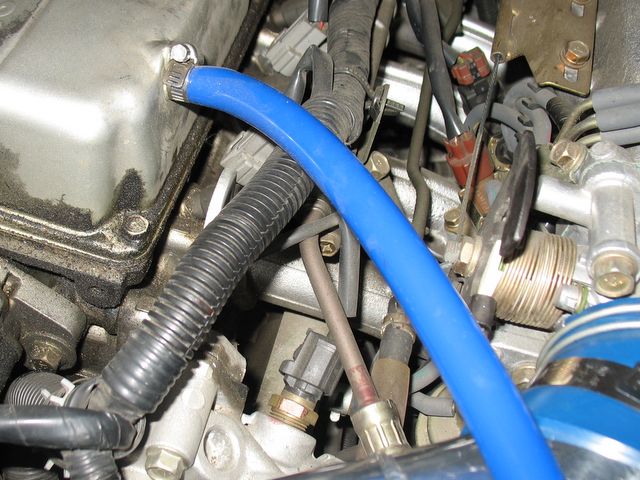

Install the PCV tube

Clamp the short-ram intake PCV tube

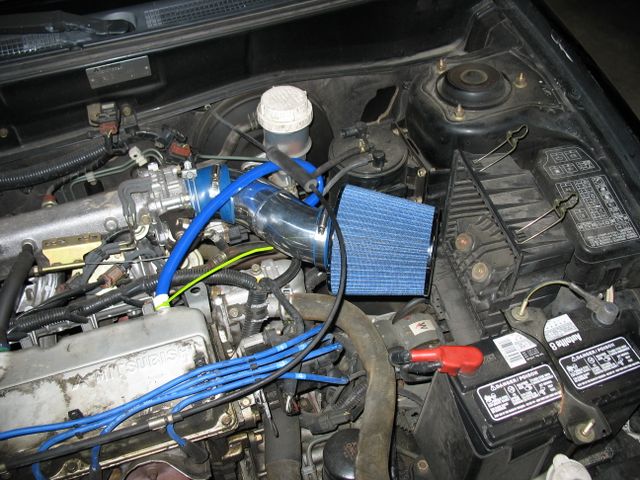

You're done!
